Fusion-A Arrow
The Fusion Amber Series offers affordable, quality, American-made lighting products.
Spec sheet
The Fusion Amber Series offers affordable, quality, American-made lighting products. The Fusion Amber products are 20% less money than the single color Fusion products, with all-amber color configurations.
Features
- ● Integrated features and functions:
- ● Front and Rear Flashing Modes
- ● Arrow Directional Modes: 9 Directional Sequences
- ● All-amber Color Modules
- ● 1 User Programmable Modes
- ● 16 Warning Flash Patterns

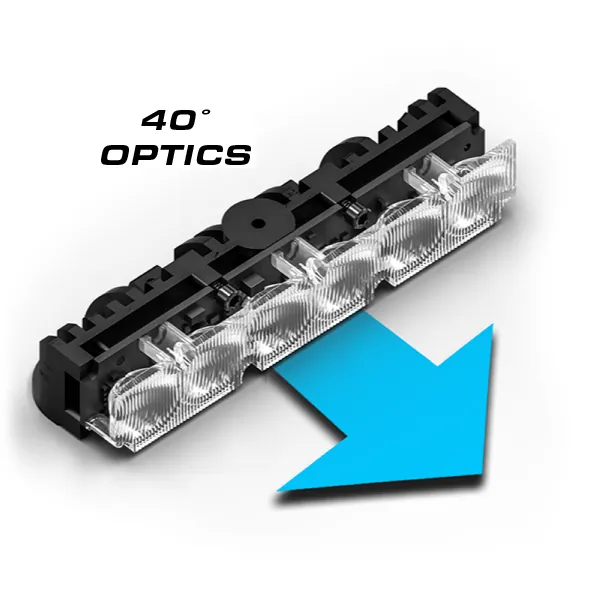

- ● 40° Wide Optical Light Spread
- ● Easy Field Serviceability with Plug-and-Play Connectivity

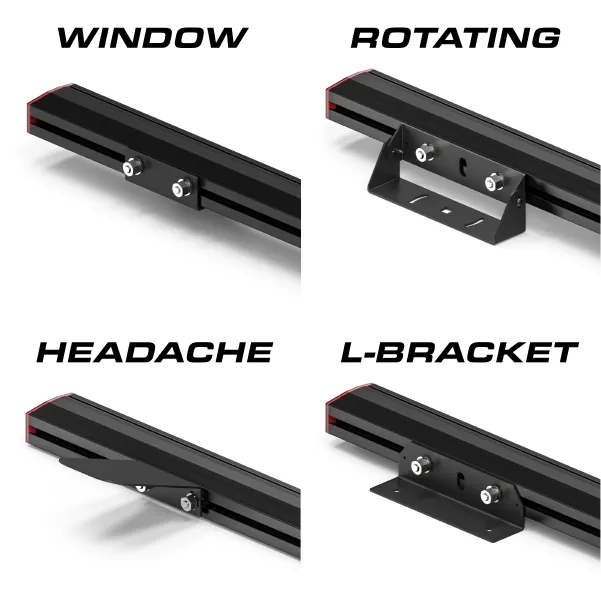

- ● L-Bracket, 2X L-Bracket and Headliner Brackets are Available
- ● Modules encapsulated for moisture resistance
- ● 96 LED Count
- ● 19,200 Lumens
- ● Compatible with 4200 Mini Controller, 4200 Data Link, Typhoon, Feniex ONE
Specifications
- ● Product Part Number
- FA-1016
- ● Current Draw
- 12 Amps
- ● Cable Length
- 8 feet
- ● IP67 Weather-resistant

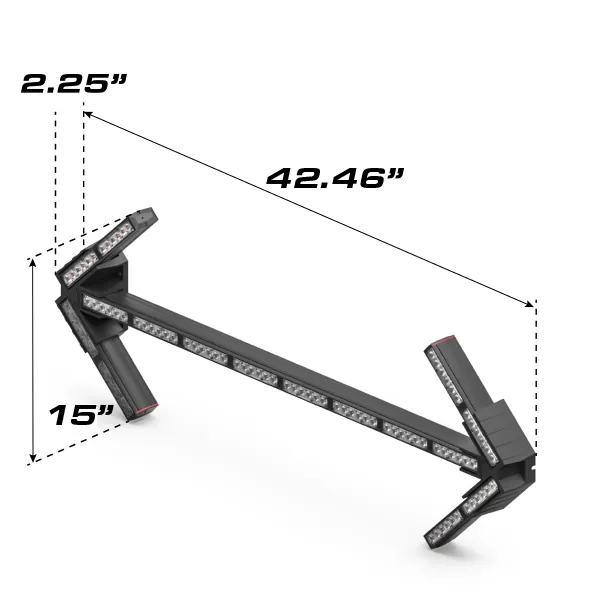

- ● Dimensions
- 15” H x 2.63" W x 42.46" L
- ● Certifications
- SAE J1113, SAE J595, ECE R65 Class 1, California Title 13, NFPA, KKK
- ● 5 Year Manufacturer Warranty
- ● Made in the USA
- Austin, TX
- ● Input Voltage
- 10-18 Volts DC
More views
